Tomei Forged H-Beam Connecting Rod Set

Limited-Time Offer

DIESEL2025 |

Copy

00 d

00 h

00 m

$648.00 USD ~~$720.00 USD~~

10% off

Tax included. Shipping calculated at checkout.

SKU: 1E4CX

Forged H-Beam Connecting Rod Set Category: Cylinder Block Connecting Rod Category Engine Parts Number FORGED H-BEAM CONNECTING ROD SET 4G63 150.00mm (STD/2.2) 4G63 TA203A-MT01A FORGED H-BEAM CONNECTING ROD SET 4B11...

Option: 4G63 150.00mm (STD/2.2)

4G63 150.00mm (STD/2.2) 4B11 EVO10 143.75mm (STD/2.3)

Payment and security

Your payment information is processed securely.

View details

Description

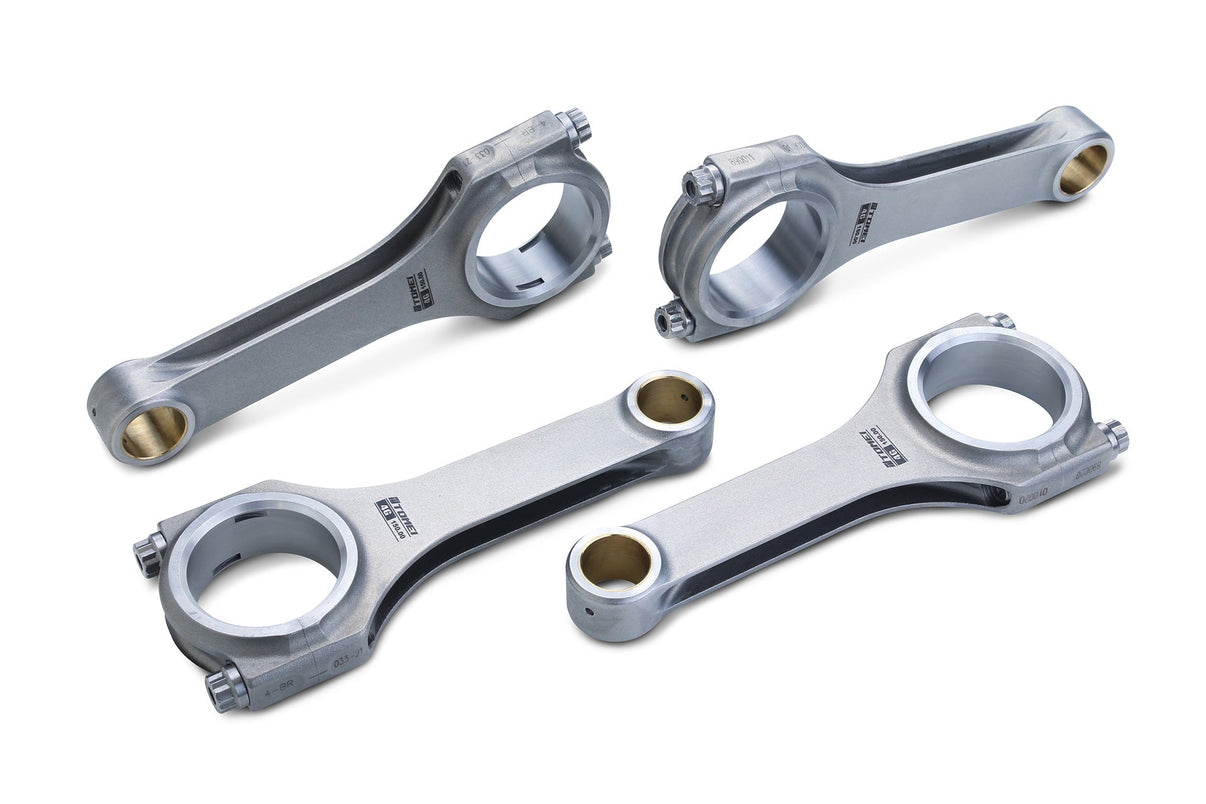

Forged H-Beam Connecting Rod Set

Category: Cylinder Block Connecting Rod

Category	Engine	Parts Number
FORGED H-BEAM CONNECTING ROD SET 4G63 150.00mm (STD/2.2)	4G63	TA203A-MT01A
FORGED H-BEAM CONNECTING ROD SET 4B11 EVO10 143.75mm (STD/2.3)	4B11	TA203A-MT02A

Part Number	TA203A-MT01A	TA203A-MT02A
C-to-C (mm)	150.00 (OEM ±0.0)	143.75 (OEM ±0.0)
BE.BORE×WIDTH (mm)	48.0×26.4	55.0×21.9
PE.BORE×WIDTH (mm) (Bush inner cir)	22.0×23.0	23.0×20.0
MATERIAL	SNCM439	SNCM439
BOLT	ARP L19 3/8-24 40.0mm	ARP L19 3/8-24 40.0mm
BEARING SIZE	INNER DIA. 45.0mm WIDTH 21.0mm	INNER DIA. 52.0mm WIDTH 17.0mm
WEIGHT (g)	591.0	588.0
