Tomei Forged H-Beam Connecting Rod Set

Limited-Time Offer

DIESEL2025 |

Copy

00 d

00 h

00 m

$648.00 USD ~~$720.00 USD~~

10% off

Tax included. Shipping calculated at checkout.

SKU: 1E4D1

Forged H-Beam Connecting Rod Set Category: Cylinder Block Connecting Rod Category Engine Parts Number Forged H-Beam Connecting Rod Set 4A-G 122.00mm (STD/1.8) 4AG-16V,4AG-20V TA203A-TY01A Forged H-Beam Connecting Rod Set 2JZ-GTE...

Hurry up! Only 2 left

Option: 4A-G 122.00mm (STD/1.8)

4A-G 122.00mm (STD/1.8) 2JZ-GTE 142.00mm (STD/3.4) 2JZ-GTE 139.00mm (3.6) 1JZ-GTE 125.25mm (STD)

Payment and security

Your payment information is processed securely.

View details

Description

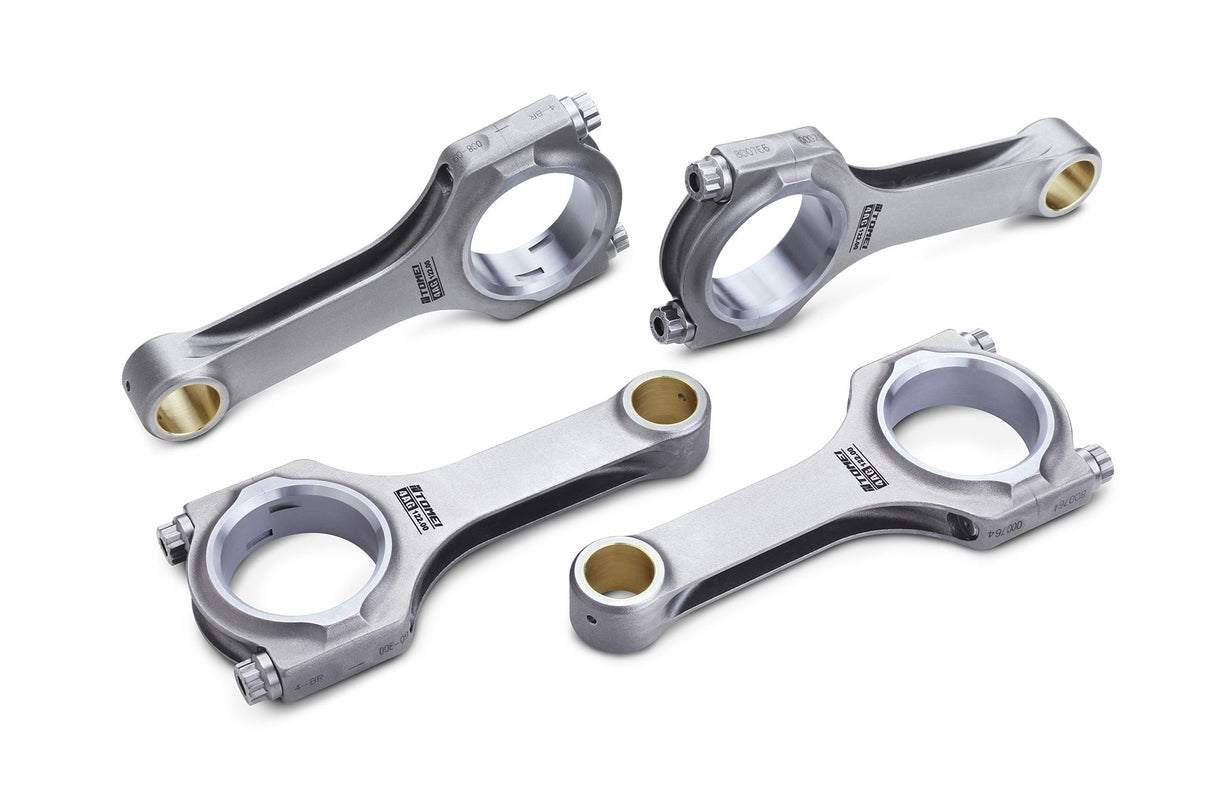

Forged H-Beam Connecting Rod Set

Category: Cylinder Block Connecting Rod

Category	Engine	Parts Number
Forged H-Beam Connecting Rod Set 4A-G 122.00mm (STD/1.8)	4AG-16V,4AG-20V	TA203A-TY01A
Forged H-Beam Connecting Rod Set 2JZ-GTE 142.00mm (STD/3.4)	2JZ	TA203A-TY03A
Forged H-Beam Connecting Rod Set 2JZ-GTE 139.00mm (3.6)	2JZ	TA203A-TY03B
Forged H-Beam Connecting Rod Set 1JZ-GTE 125.25mm (STD)	1JZ	TA203A-TY04A

Part Number	TA203A-TY01A	TA203A-TY03A	TA203A-TY03B	TA203A-TY04A
C-to-C (mm)	122.00 (OEM ±0.0)	142.00 (OEM ±0.0)	139.00 (OEM -3.0)	125.25 (OEM ±0.0)
BE.BORE×WIDTH (mm)	45.0×21.85	55.0 x 26.0	55.0 x 26.0	55.0 x 26.0
PE.BORE×WIDTH (mm) (Bush inner cir)	20.0×21.85	22.0 x 26.0	22.0 x 26.0	20.0 x 26.0
MATERIAL	SNCM439	SNCM439	SNCM439	SNCM439
BOLT	ARP L19 3/8-24 40.0mm	ARP L19 3/8-24 40.0mm	ARP L19 3/8-24 40.0mm	ARP L19 3/8-24 40.0mm
BEARING SIZE	INNER DIA. 42.0mm WIDTH 17.2mm	INNER DIA. 52.0mm WIDTH 19mm	INNER DIA. 52.0mm WIDTH 19mm	INNER DIA. 52.0mm WIDTH 19mm
WEIGHT (g)	469.0	647	658	630
