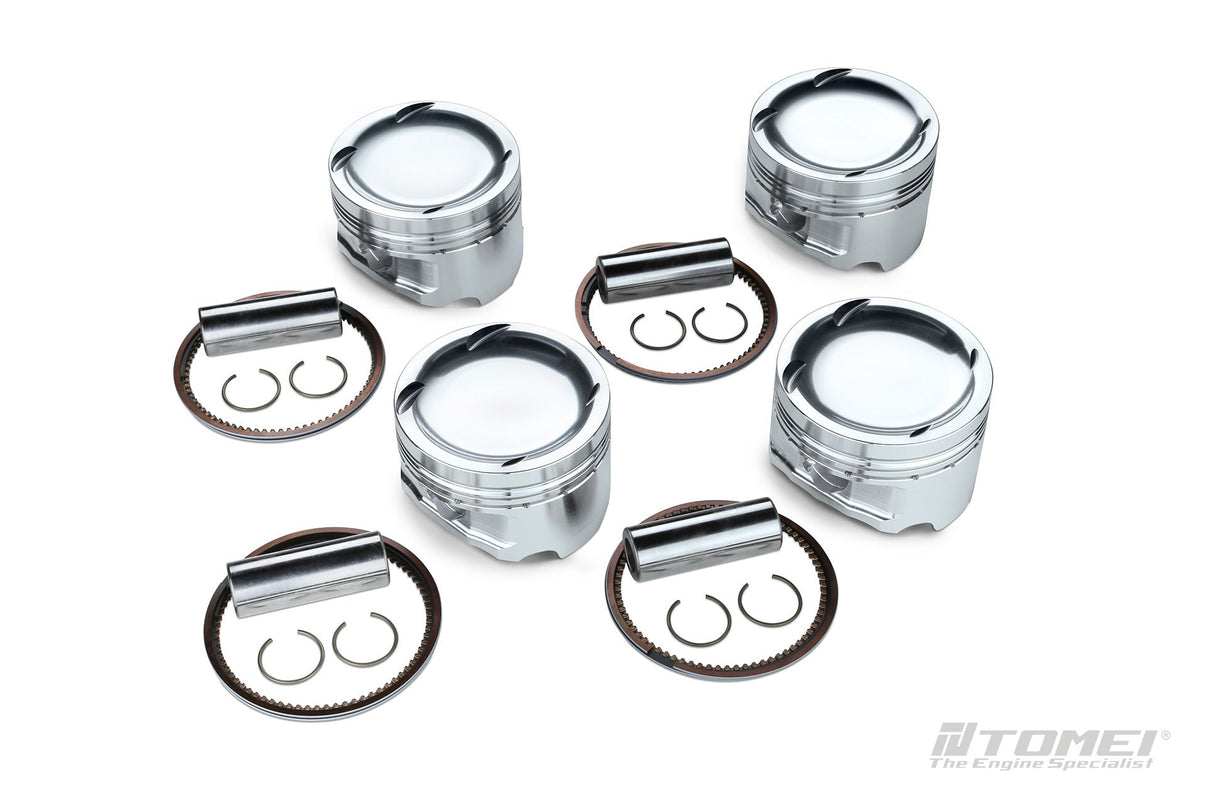

Tomei Forged Piston Kit

Limited-Time Offer

DIESEL2025 |

Copy

00 d

00 h

00 m

$1,080.00 USD ~~$1,200.00 USD~~

10% off

Tax included. Shipping calculated at checkout.

SKU: 1Q11N

Tomei Forged Piston Kit 4G63 & 4B11 Category Engine Parts Number 86.00mm CH31.65 (2.2) 4G63 TA202A-MT01A 86.00mm CH31.65 (2.2) CP 4G63 TA202A-MT01AP 87.00mm CH27.40 (2.3) 4B11 TA202A-MT02A 87.00mm CH27.40...

Hurry up! Only 2 left

Option: 4G63 86.00mm CH31.65 (2.2)

4G63 86.00mm CH31.65 (2.2) 4G63 86.00mm CH31.65 (2.2) CP 4B11 EVO10 87.00mm CH27.40 (2.3) 4B11 EVO10 87.00mm CH27.40 (2.3) CP

Payment and security

Your payment information is processed securely.

View details

Description

Tomei Forged Piston Kit 4G63 & 4B11

Category	Engine	Parts Number
86.00mm CH31.65 (2.2)	4G63	TA202A-MT01A
86.00mm CH31.65 (2.2) CP	4G63	TA202A-MT01AP
87.00mm CH27.40 (2.3)	4B11	TA202A-MT02A
87.00mm CH27.40 (2.3) CP	4B11	TA202A-MT02AP

Part Number	TA202A-MT01A	TA202A-MT01AP	TA202A-MT02A	TA202A-MT02AP
BORE (mm)	86.00 (OEM +1.0)	86.00 (OEM +1.0)	87.00 (OEM +1.0)	87.00 (OEM +1.0)
PIN DIA. (mm)	22	22	23	23
PIN LENGTH (mm)	60	60	62	57
CLIP INNNER DIA.	22	22	23	23
VALVE RECESS	WITH	WITH	WITHOUT	WITHOUT
COMP.HEIGHT (mm)	31.65 (OEM -3.35)	31.65 (OEM -3.35)	27.38 (OEM -6.0)	27.38 (OEM -6.0)
PISTON DOME VOL. (cc)	-19.5	-19.6		-12.9
PISTON WEIGHT (g)	328.7	335.1		305.1
PIN WEIGHT (g)	121.5	125	133	117
TOTAL WEIGHT (g)	450.2	460.1		422.1
TOP RING (mm)	1.20 x 3.05	1.20 x 2.95	1.20 x 3.05	1.00 x 3.30
SECOND RING (mm)	1.20 x 3.70	1.20 x 2.95	1.20 x 3.9	1.20 x 3.60
OIL RING (mm)	2.50 x 2.85	2.00 x 2.60	2.50 x 2.95	3.60 x 3.25
MATERIAL	A4032	A2618	A4032	A2618
