$1,620.00 USD ~~$1,800.00 USD~~

10% off

Tax included. Shipping calculated at checkout.

SKU: 1Q11X

Forged Piston Kit 2JZ-GTE Category: Cylinder Block Piston Category Parts Number 87.00mm CH30.00 (3.4) TA202A-TY03A 87.00mm CH30.00 (3.4) CP TA202A-TY03AP 87.00mm CH29.50 (3.6) TA202A-TY03B 87.00mm CH29.50 (3.6) CP TA202A-TY03BP...

Hurry up! Only 2 left

Option: 87.00mm CH30.00 (3.4)

87.00mm CH30.00 (3.4) 87.00mm CH30.00 (3.4) CP 87.00mm CH29.50 (3.6) 87.00mm CH29.50 (3.6) CP

Payment and security

Your payment information is processed securely.

View details

Description

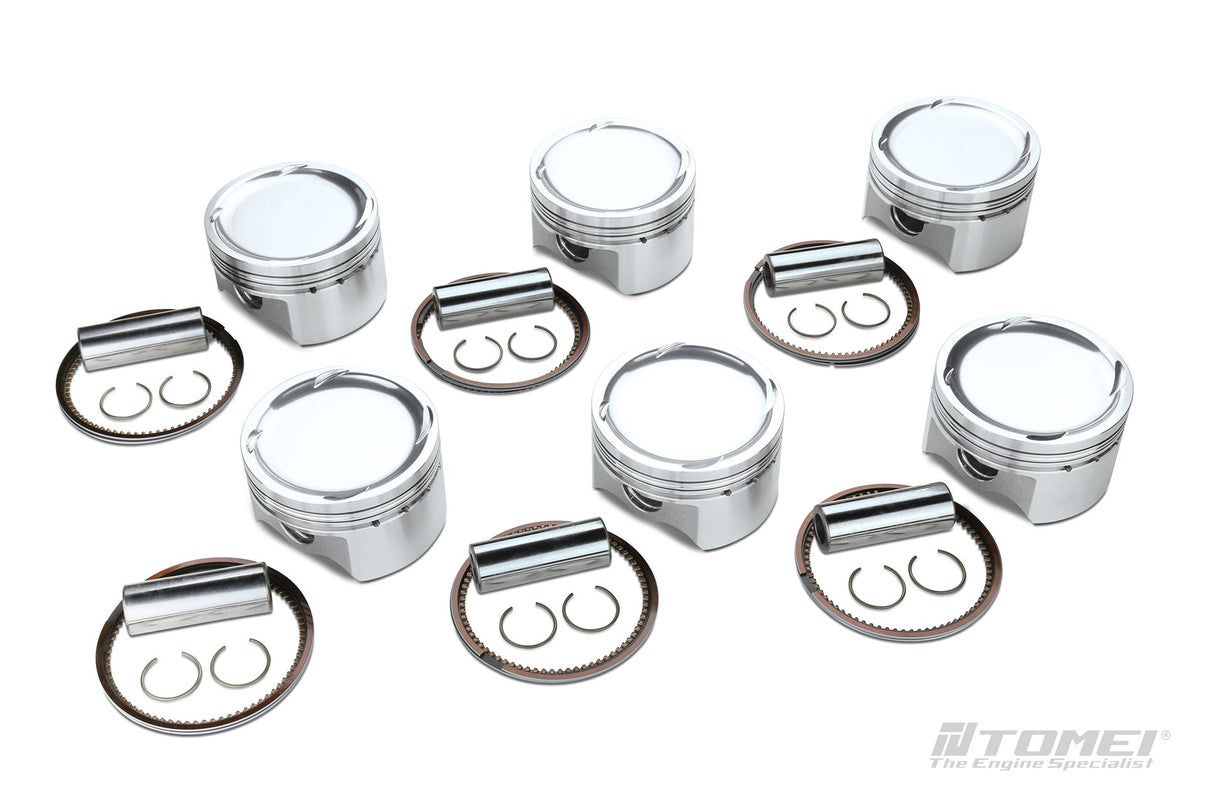

Forged Piston Kit 2JZ-GTE

Category: Cylinder Block Piston

Category	Parts Number
87.00mm CH30.00 (3.4)	TA202A-TY03A
87.00mm CH30.00 (3.4) CP	TA202A-TY03AP
87.00mm CH29.50 (3.6)	TA202A-TY03B
87.00mm CH29.50 (3.6) CP	TA202A-TY03BP

Part Number	TA202A-TY03A	TA202A-TY03B	TA202A-TY03AP	TA202A-TY03BP
BORE (mm)	87.00 (OEM +1.0)	87.00 (OEM +1.0)	87.00 (OEM +1.0)	87.00 (OEM +1.0)
PIN DIA. (mm)	22	22	22	22
PIN LENGTH (mm)	60	60	64	64
CLIP INNNER DIA.	22	22	22	22
VALVE RECESS	WITH	WITH	WITH	WITH
COMP.HEIGHT (mm)	30.00 (OEM -4.0)	29.50 (OEM -4.5)	30.00 (OEM -4.0)	29.50 (OEM -4.5)
PISTON DOME VOL. (cc)	-17.5	-22.6	-17.7	-22.6
PISTON WEIGHT (g)	299.6	278.5	326	319
PIN WEIGHT (g)	121.5	121.5	133	133
TOTAL WEIGHT (g)	421.1	400	459	452
TOP RING (mm)	1.20 x 3.05	1.20 x 3.05	1.20 x 2.9	1.20 x 2.9
SECOND RING (mm)	1.20 x 3.90	1.20 x 3.90	1.20 x 3.0	1.20 x 3.0
OIL RING (mm)	2.50 x 2.95	2.50 x 2.95	2.0 x 2.7	2.0 x 2.7
MATERIAL	A4032	A4032	A2618	A2618
