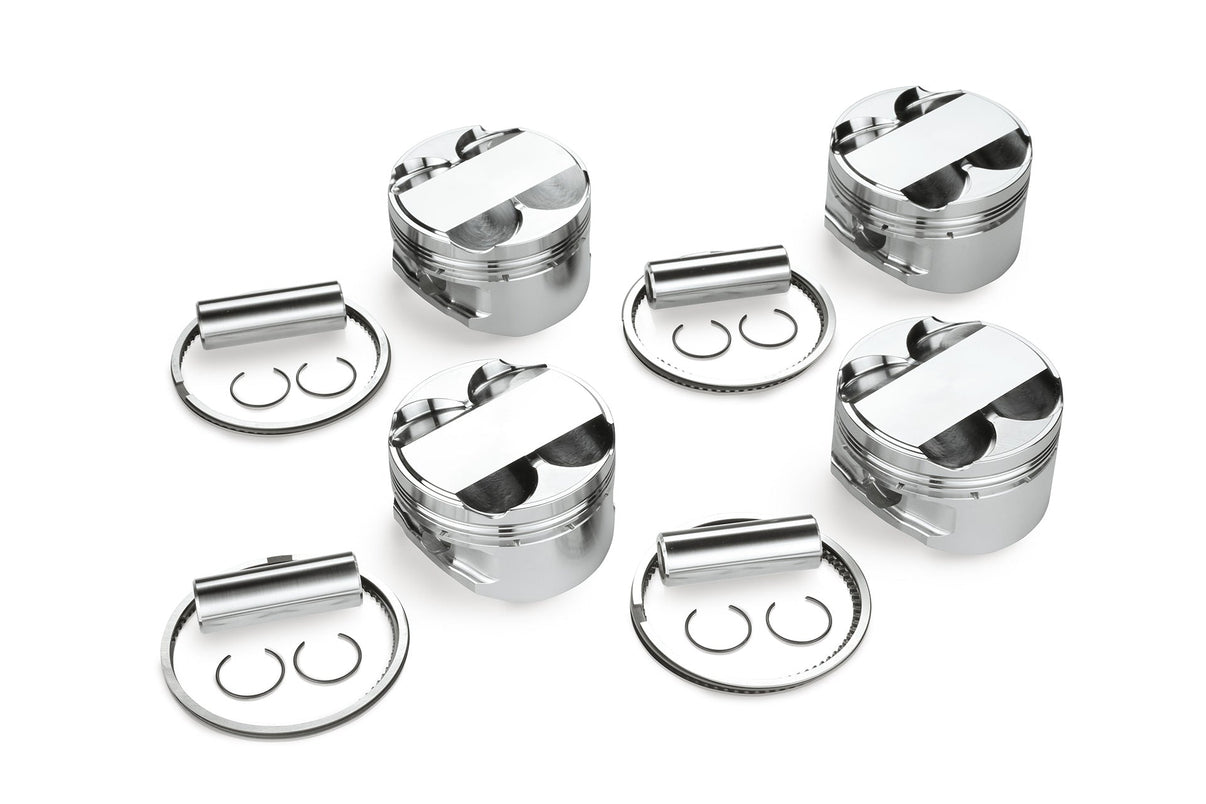

Tomei Forged Piston Kit 4A-G

Limited-Time Offer

DIESEL2025 |

Copy

00 d

00 h

00 m

$1,080.00 USD ~~$1,200.00 USD~~

10% off

Tax included. Shipping calculated at checkout.

SKU: 1WDTL

Tomei Forged Piston Kit 4A-G Category Engine Parts Number 82.00mm CH27.70 (1.8) CP 4AG-16V TA202A-TY01AP 82.00mm CH27.70 (1.8) CP 4AG-20V TA202A-TY02AP Part Number TA202A-TY02AP TA202A-TY01AP BORE (mm) 82.00 (OEM +1.0)...

Hurry up! Only 6 left

Option: 16V 82.00mm CH27.70 (1.8) CP

16V 82.00mm CH27.70 (1.8) CP 20V 82.00mm CH27.70 (1.8) CP

Payment and security

Your payment information is processed securely.

View details

Description

Tomei Forged Piston Kit 4A-G

Category	Engine	Parts Number
82.00mm CH27.70 (1.8) CP	4AG-16V	TA202A-TY01AP
82.00mm CH27.70 (1.8) CP	4AG-20V	TA202A-TY02AP

Part Number	TA202A-TY02AP	TA202A-TY01AP
BORE (mm)	82.00 (OEM +1.0)	82.00 (OEM +1.0)
PIN DIA. (mm)	20	20
PIN LENGTH (mm)	57	60
CLIP INNNER DIA.	20	20
VALVE RECESS	WITH	WITH
COMP.HEIGHT (mm)	27.70 (OEM -3.0)	27.70 (OEM -3.0)
PISTON DOME VOL. (cc)	-1.38	-0.32
PISTON WEIGHT (g)	265	277
PIN WEIGHT (g)	90.4	90.4
TOTAL WEIGHT (g)	355.4	367.4
TOP RING (mm)	1.00 x 3.20	1.00 x 3.20
SECOND RING (mm)	1.20 x 3.5	1.20 x 3.5
OIL RING (mm)	2.8 x 2.50	2.8 x 2.50
MATERIAL	A2618	A2618
