Tomei Full Titanium Muffler Kit Expreme Ti JZX100

Application :

• JZX100 CRESTA 1JZ-GTE EARLY/LATE AT/MT

• JZX100 CHASER 1JZ-GTE EARLY/LATE AT/MT

• JZX100 MARK II 1JZ-GTE EARLY/LATE AT/MT

Specification

• MATERIAL: TTi

• MAIN PIPE A DIAMETER: 3.15inch(80mm)

• MAIN PIPE THICKNESS: 1.0mm

• SILENCER DIAMETER: 5.98inch(152mm)

• SILENCER THICKNESS: 1.0mm

• EXIT DIAMETER: 4.53inch(115mm)

• EXIT THICKNESS: 1.0mm

• FLANGE THICKNESS: 8.0mm

• WEIGHT: 15.43lbs(7.0kg)

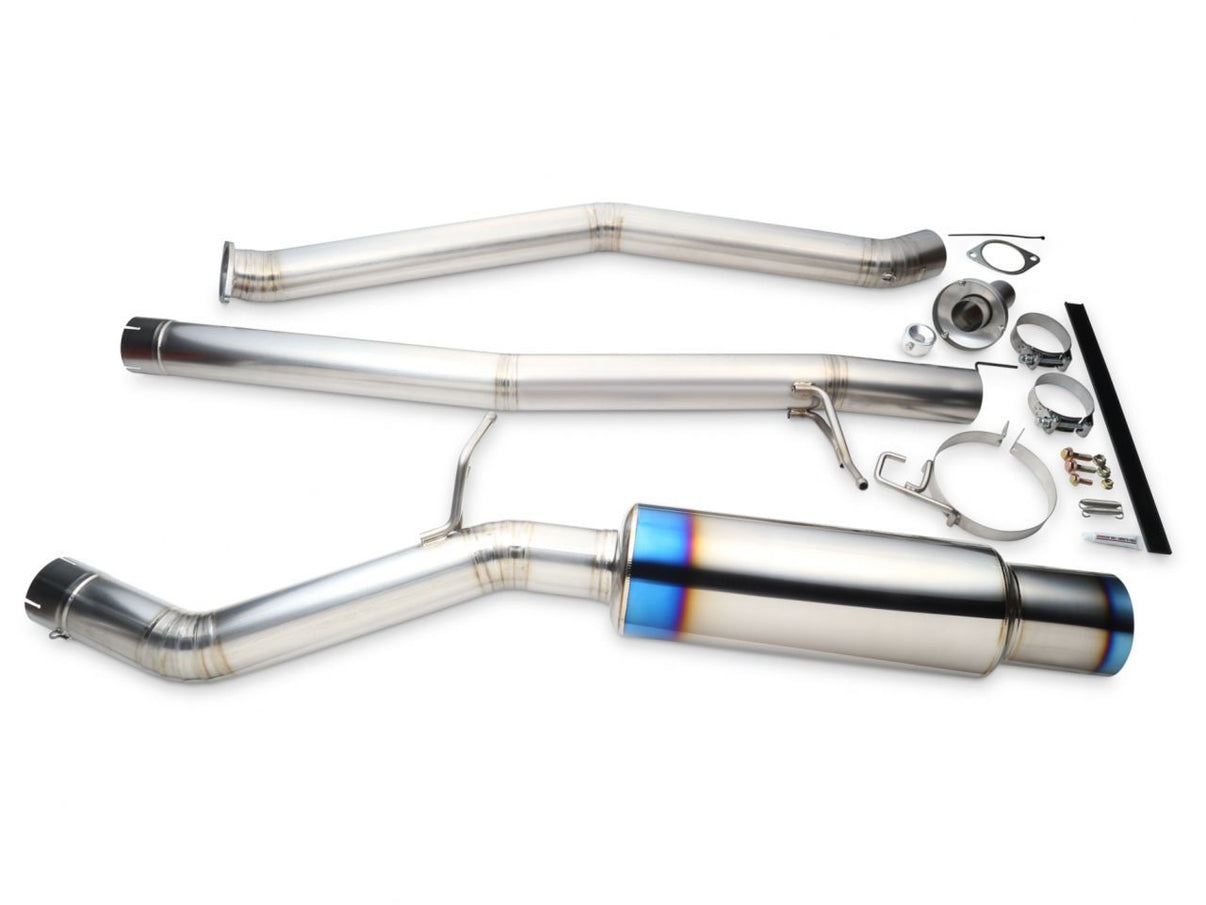

Kit Content

• MAIN PIPE A (1)
• MAIN PIPE B (1)
• SILENCER (1)
• GASKET (1)
• FLANGE BOLT M10 L=35mm P=1.25mm (2)
• FLANGE NUT M10 P=1.25mm (2)
• CLAMP BAND (2)
• SPRING (2)
• SILENCER BAND (1)
• SILENCER BAND RUBBER (1)
• FLANGE BOLT M8 L=25mm P=1.25mm (1)
• FLANGE NUT M8 P=1.25mm (1)
• SOUND REDUCER ver.2 (1)
• BUTTON BOLT (3)
• FLANGE NUT (3)
• ALLEN KEY (1)
• ZIP TIE (1)
• BOLT SMOOTH PASTE (1)
