Toyota 9.5" Axle Shaft Gauge Precision tool for 9.5" axle shaft measurements. This axle shaft gauge bolts directly to a Toyota 9.5" axle housing to show you exactly where the...

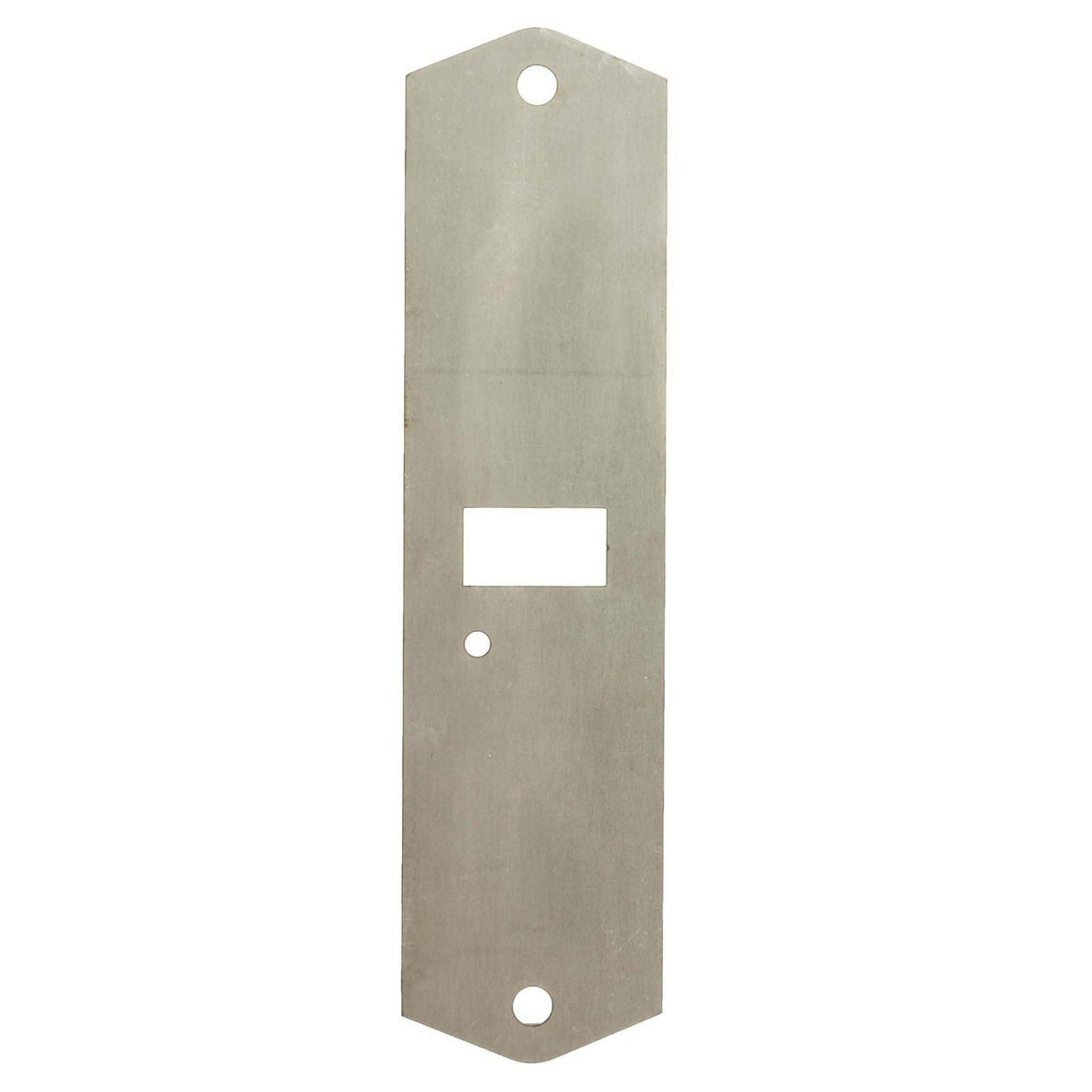

This axle shaft gauge bolts directly to a Toyota 9.5" axle housing to show you exactly where the shafts will end up along with the pinion position. The round hole indicates the center of the pinion, while the rectangular box shows the natural gap between axle shafts. Essential for anyone building custom Toyota 9.5" axles, this gauge takes the guesswork out of axle shaft measurements and ensures proper fitment every time.
Built for accuracy and ease of use at 1.05 lbs. Since you only need 75% spline engagement, you can measure to the edge of the box and round down about 1/8" for optimal results.
Key Features
Part Number: R2117
Fitment: Toyota 9.5" axle housings
Material: Precision construction
Dimensions: 1.05 lbs weight
Design: Bolt-on gauge with pinion and shaft positioning indicators
What's Included
1x Toyota 9.5" axle shaft gauge
Notes
Bolts directly to Toyota 9.5" axle housing
Shows pinion center and natural shaft gap
Measure to box edge and round down 1/8" for 75% spline engagement
