Toyota Spring Over Axle Perch Pair, 3.0" Axle Tube 2.5" Wide Precision spring perches for spring-over conversions. These spring over axle perches are built for Toyota mini truck and Tacoma...

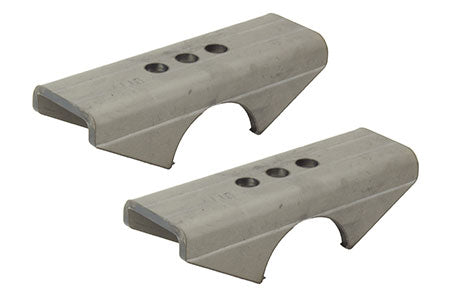

Toyota Spring Over Axle Perch Pair, 3.0" Axle Tube 2.5" Wide
Precision spring perches for spring-over conversions.
These spring over axle perches are built for Toyota mini truck and Tacoma applications with 3.0" axle tubes. CNC laser cut from 1/4" HR P&O steel plate and folded on a 290 ton CNC brake for precision fitment. The 8.0" length helps control axle wrap while the 2.5" width provides a stable platform for reliable spring mounting.
Built for versatility with 3 spring pin mounting options to adjust wheelbase if needed. At 8 lbs for the pair, these perches are easily adjustable .25" up or down in tube size with a grinder for different applications.
Key Features
Part Number: R1110-E
Fitment: Toyota Mini and Tacoma 3.0" axle tubes
Material: 1/4" HR P&O steel plate, CNC laser cut
Dimensions: 8.0" length, 2.5" width, 8 lbs total weight for pair
Design: Spring-over application with 3 spring pin mounting options
What's Included
2x Spring over axle perches (pair for one axle)
Notes
Designed specifically for spring-over applications
Adjustable .25" up or down in tube size with grinder
