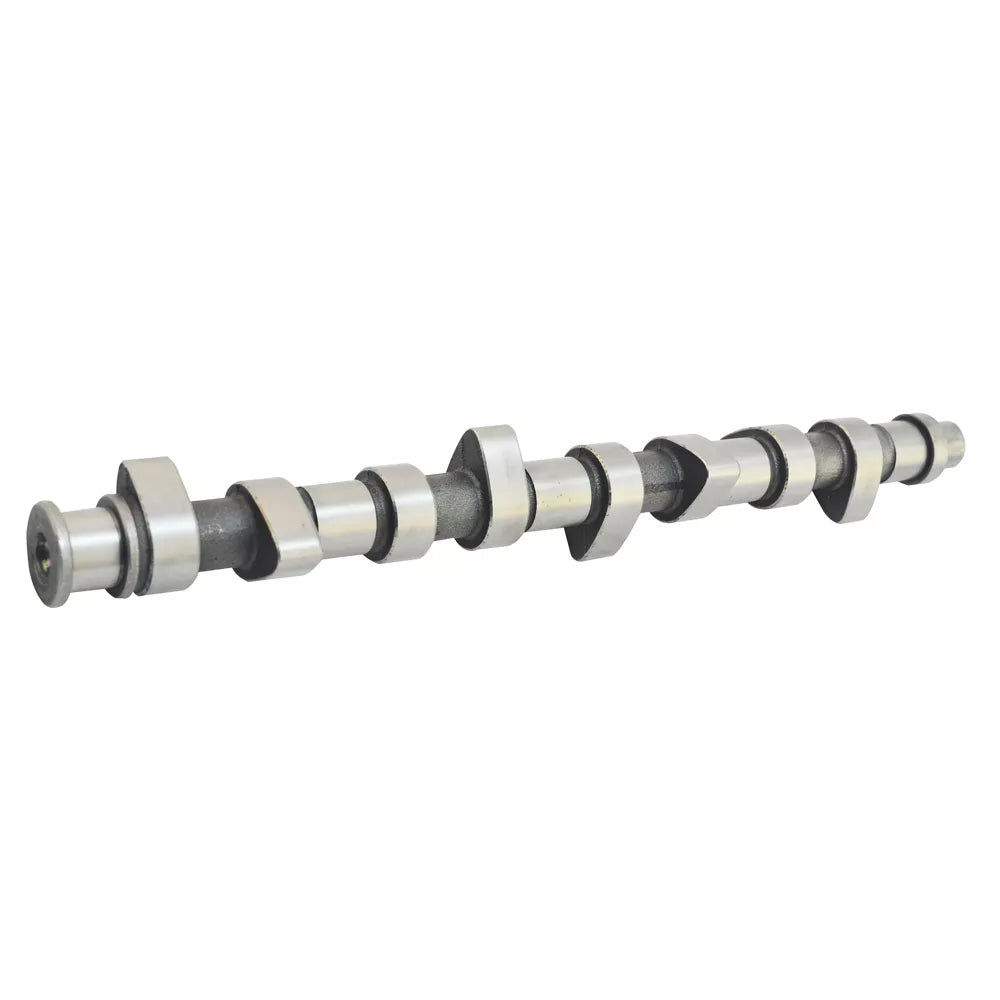

VW 8V 294 / 290 turbo solid tappets performance camshaft

Application: EA 827 engines Capacities 1781-1847-1984cc from 1986
8V Engines with solid tappets

VW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro.

Duration intake: 294 degrees
Duration exhaust: 290 degrees
Intake valve lift: 11.50mm
Exhaust valve lift: 11.50mm
Lobe centers: 113.5 degrees
Valve timing
Intake open: 29 degrees
Intake closes: 85 degrees
Exhaust open: 84 degrees
Exhaust close: 26 degrees
Valve clearance: 0.30 / 0.30
Base circle: 37,6mm
Made of 1045 quenched steel
Billet machined
52-58 HRC

IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.

All SPA Performance’s camshafts includes CMD anti scoring lube #3

Designed for extreme pressure applications, it’s perfect for camshafts break in procedures, as it withstands pressure values of 40,000 to 50,000 psi, thus avoiding scoring on the high pressure cams - followers interface.
