VW Golf / Passat 8v T3 twin scroll turbo manifold

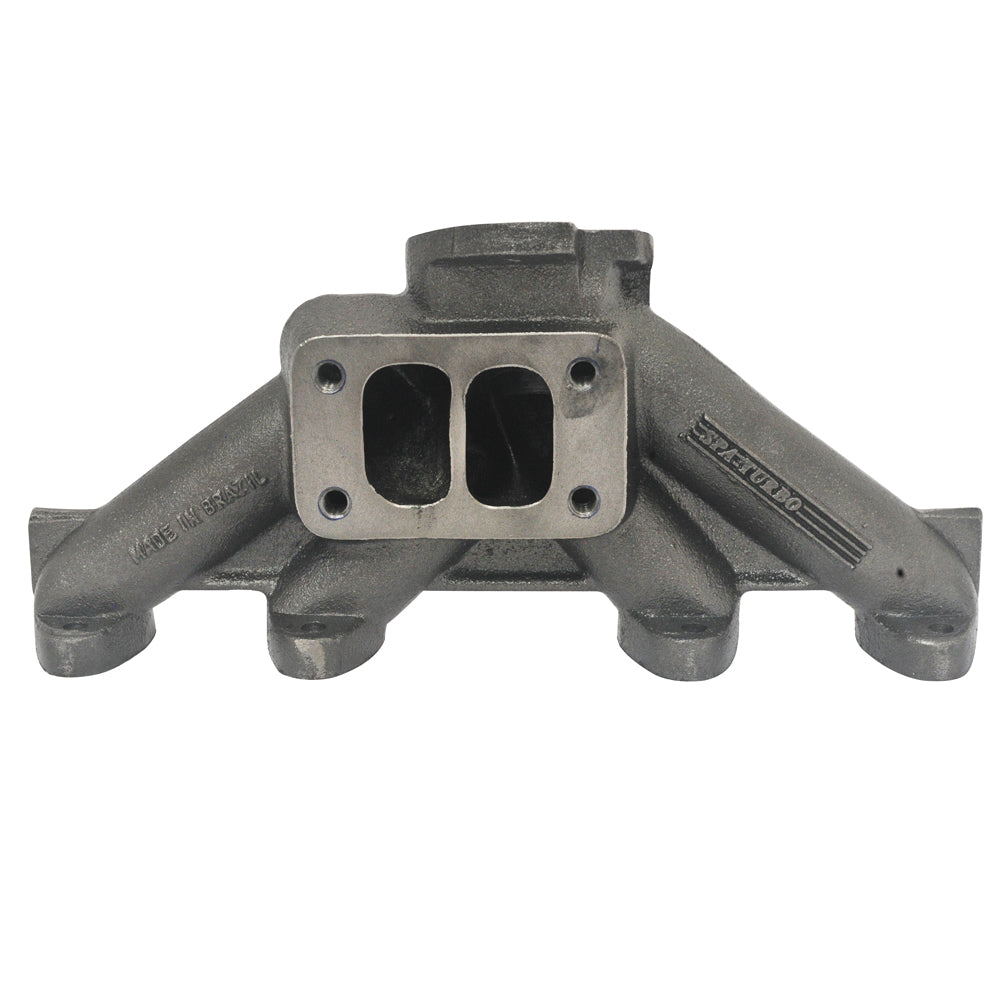

• The TMW05 manifold is a bottom-mount, GGG40 cast manifold, with a Divided T3 turbocharger Flange; manifold accepts SPA "L" fitting wastegates.
• For 2 Bolt Wastegate please check ADKTVL03.
• The application is VW Golf, Jetta, Dasher, Passat,with 1.6L, 1.8L, 2.0L 8v engines (also can be used in Diesel applications).
• Wastegate mount TMSPT03 / TMSPT04 are required on transverse engines assembly (Golf).
• Special engine mount TMSPT06 is required on Golf III & older assembly.
• Turbo flange threads: M10x1.5
  Wastegate flange (if applicable) threads: M8x1.25

SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.
