VW MKIV GTI T3 turbo manifold

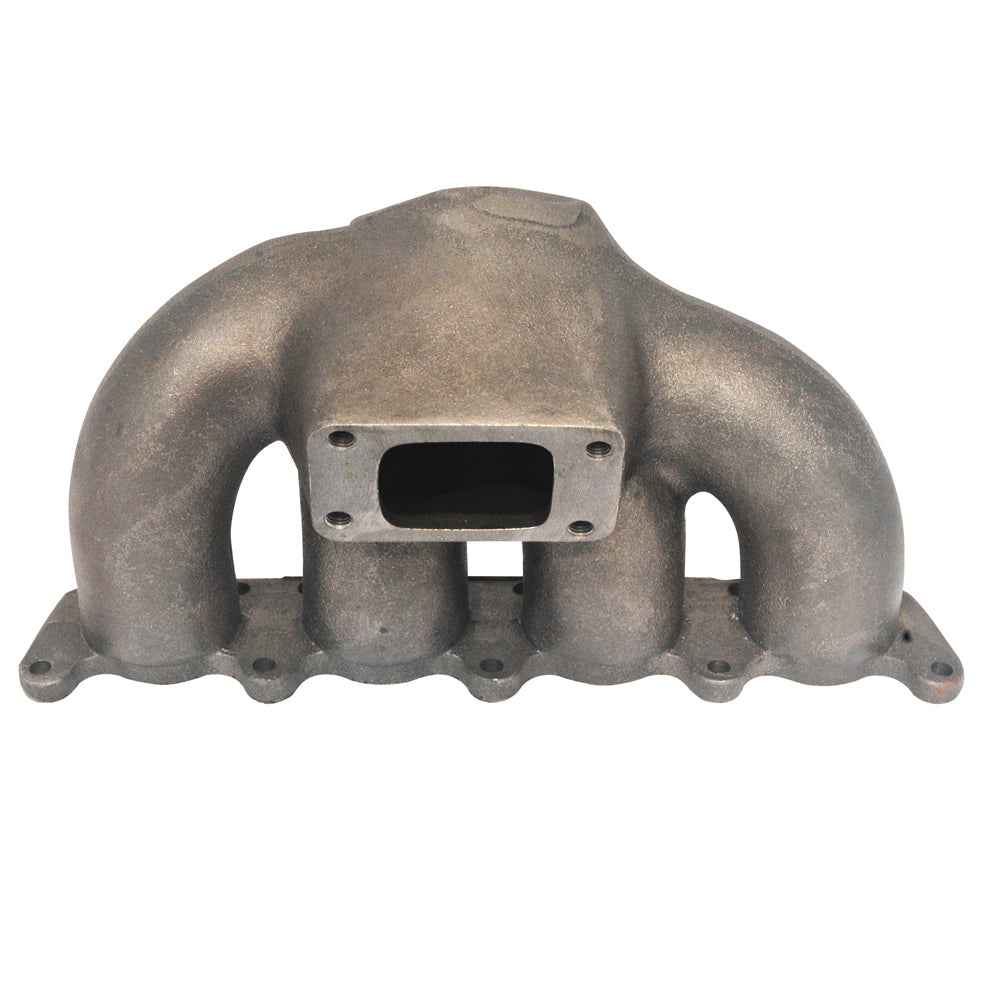

• The TMA03 manifold is a GGG40 cast manifold, with a T3 turbocharger Flange; manifold accepts 2-bolt 38mm wastegates.
• 8 spacer washers are included for easier assembly of the top nuts.
• The application is VW / Audi 1.8 20V transverse engines. (Golf, A3).
• Will not fit AWD applications.
• Internal diameter ducts: 43mm.
• We also offer a T25 manifold for the same application, please check TMA02.
• Check our new TMA05 and TMA06 Twin Scroll turbo manifolds!
• Turbo flange threads: M10x1.5
  Wastegate flange (if applicable) threads: M8x1.25

SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.
