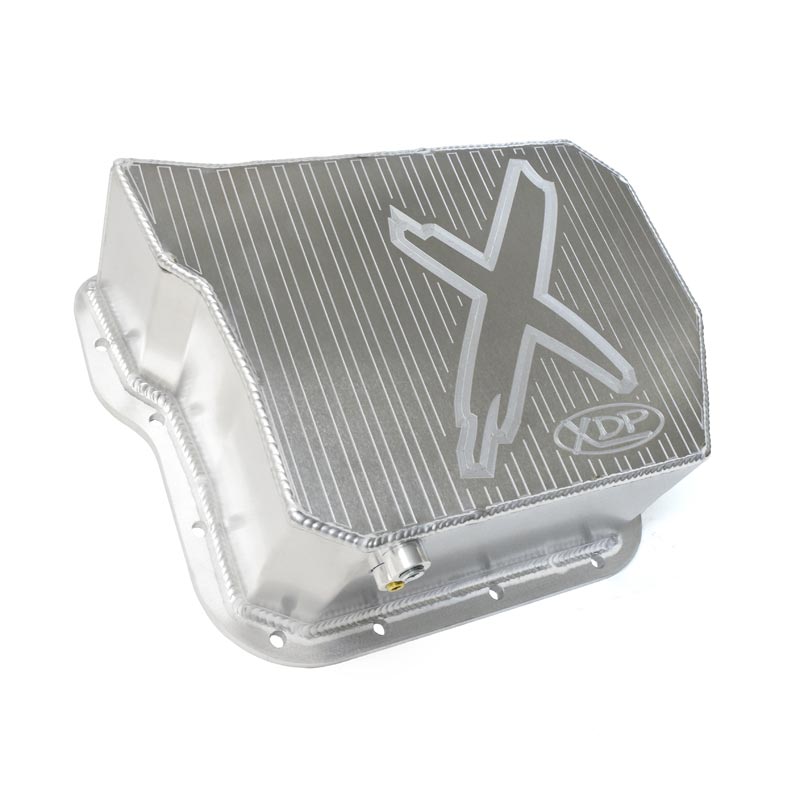

XDP Model XD450Add 4 quarts of extra fluid capacity to your 47/48RE transmission with the XDP X-TRA Deep Aluminum Transmission Pan (47/48RE) XD450. The XDP X-TRA Deep Transmission Pan features...
Add 4 quarts of extra fluid capacity to your 47/48RE transmission with the XDP X-TRA Deep Aluminum Transmission Pan (47/48RE) XD450. The XDP X-TRA Deep Transmission Pan features a fabricated aluminum sheet metal construction that gives your truck a race-inspired look that is lightweight, durable, and sleek.
Each pan is fully-welded with a 3/8 inch thick mounting flange for resistance to warping and added strength.
The CNC engraved bottom provides you with enhanced looks and style and the direct-fit design lets you install this transmission pan using any OE-style gasket. Designed to be an upgrade over the factory transmission pan, the X-TRA Deep Pan is equipped with an 1/8 inch NPT temperature port and a magnetic drain plug.
This pan comes ready to install with new stainless steel hardware and is backed by the XDP 2-year unlimited mileage warranty.
Features:
1/8 inch NPT Temperature Port
Deep Sump For Added Capacity
Fabricated Aluminum Construction
4 Quarts Added Capacity Over Stock
Includes Stainless Steel Mounting Hardware
Applications:
1989-2007 Dodge 5.9L Cummins equipped with 727/518/47RH/47RE/48RE Transmissions
Application Note:
This transmission pan does not include or require the use of a transmission filter spacer
